530 X-Rider

Search By Model
Back to listings

Revival 530 X-Rider

$0.00
* Sail Away
Send an Enquiry
DSC_5228.JPG_11zon
DSC_5258.JPG_11zon
fullsizeoutput_4a42
fullsizeoutput_4a45
IMG_1570-1
IMG_1572
IMG_1581
Click to zoom / enlarge this image
DSC_5228.JPG_11zon
DSC_5258.JPG_11zon
fullsizeoutput_4a42
fullsizeoutput_4a45
IMG_1570-1
IMG_1572
IMG_1581

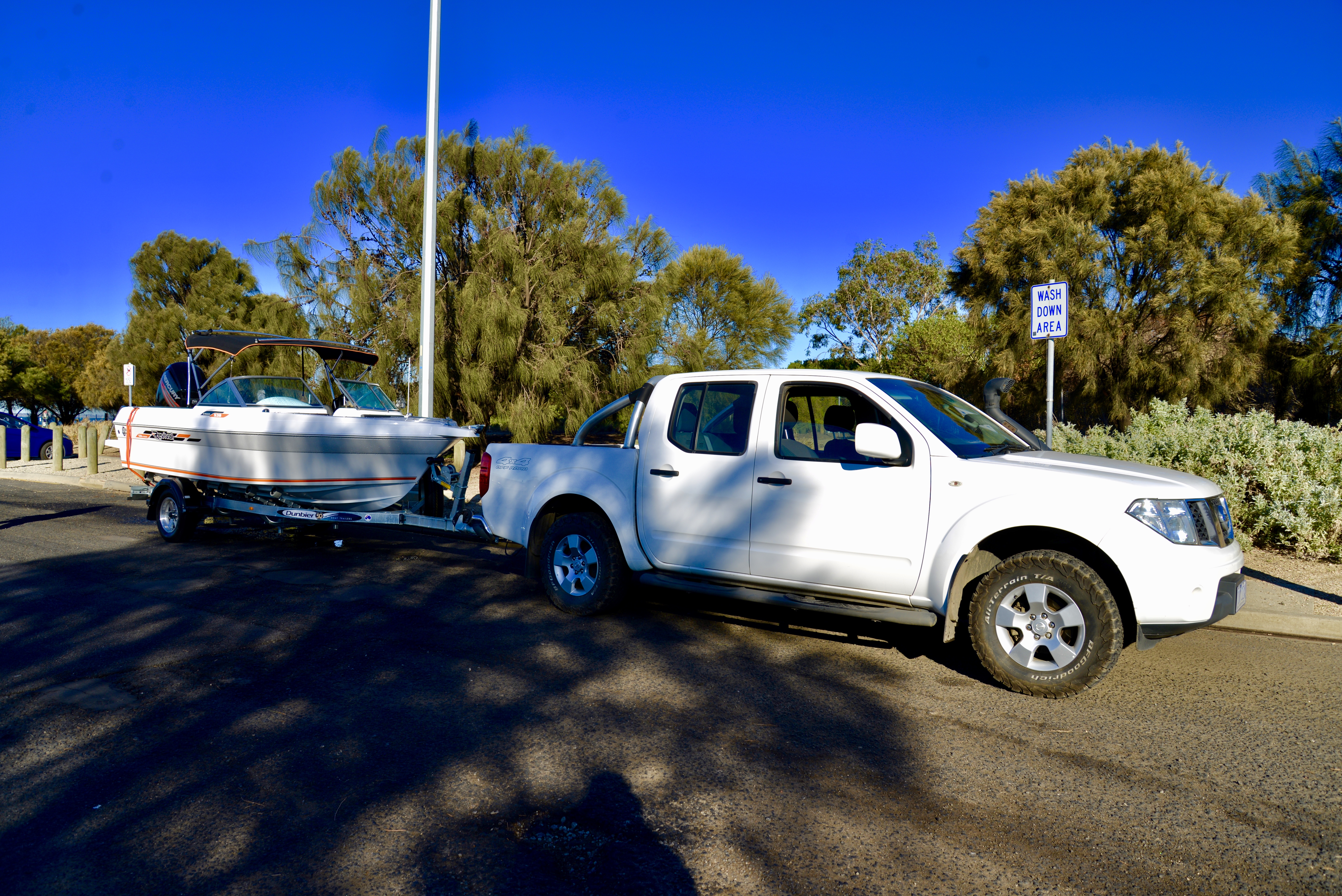

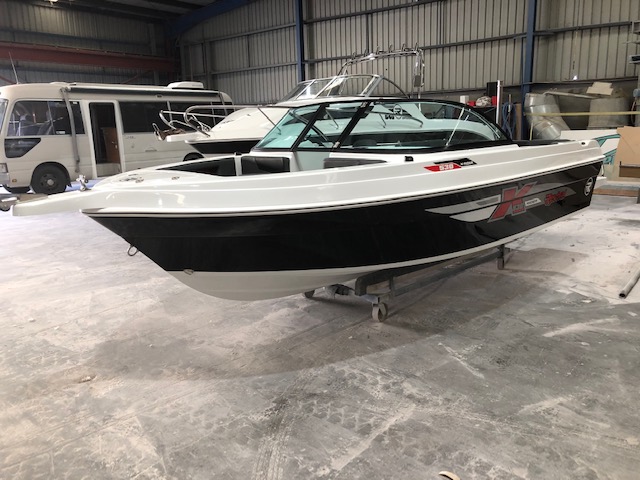

No matter what's on your family's boating agenda, the new R530 X-Rider delivers No matter what's on your family's boating agenda, the new R530 X-Rider delivers It’s true…SIZE really does matter. Coming in at a garage-friendly 5.3m (or under 6m on a trailer with a swing-away draw bar) the fun-sized R530 X-Rider is a rare find in a market where boats are getting bigger, but new home lots are rapidly shrinking.

Mechanical Steering

Steering

5.3 metres

Length

Fibreglass

Hull Material

N/A

Hull Type

Details Specifications Features & Options
Boat Details
  • Make: Revival
  • Name: 530 X-Rider
  • Model Number: N/A
  • Year: 2022
  • Length: 5.3 metres
  • Width: 2.2 metres
  • Dry Weight: 1325 kg
  • Hull Material: Fibreglass
  • Hull Type: N/A
  • Passenger Capacity: 6
  • Boat Usage: N/A
  • Steering: Mechanical Steering
  • Warranty: N/A

  • Hull Length (mm)... 5300mm
  • Hull Beam (mm)... 2200mm
  • Transom Deadrise... 20 degrees
  • Transom Height (inches)... 25"/XL

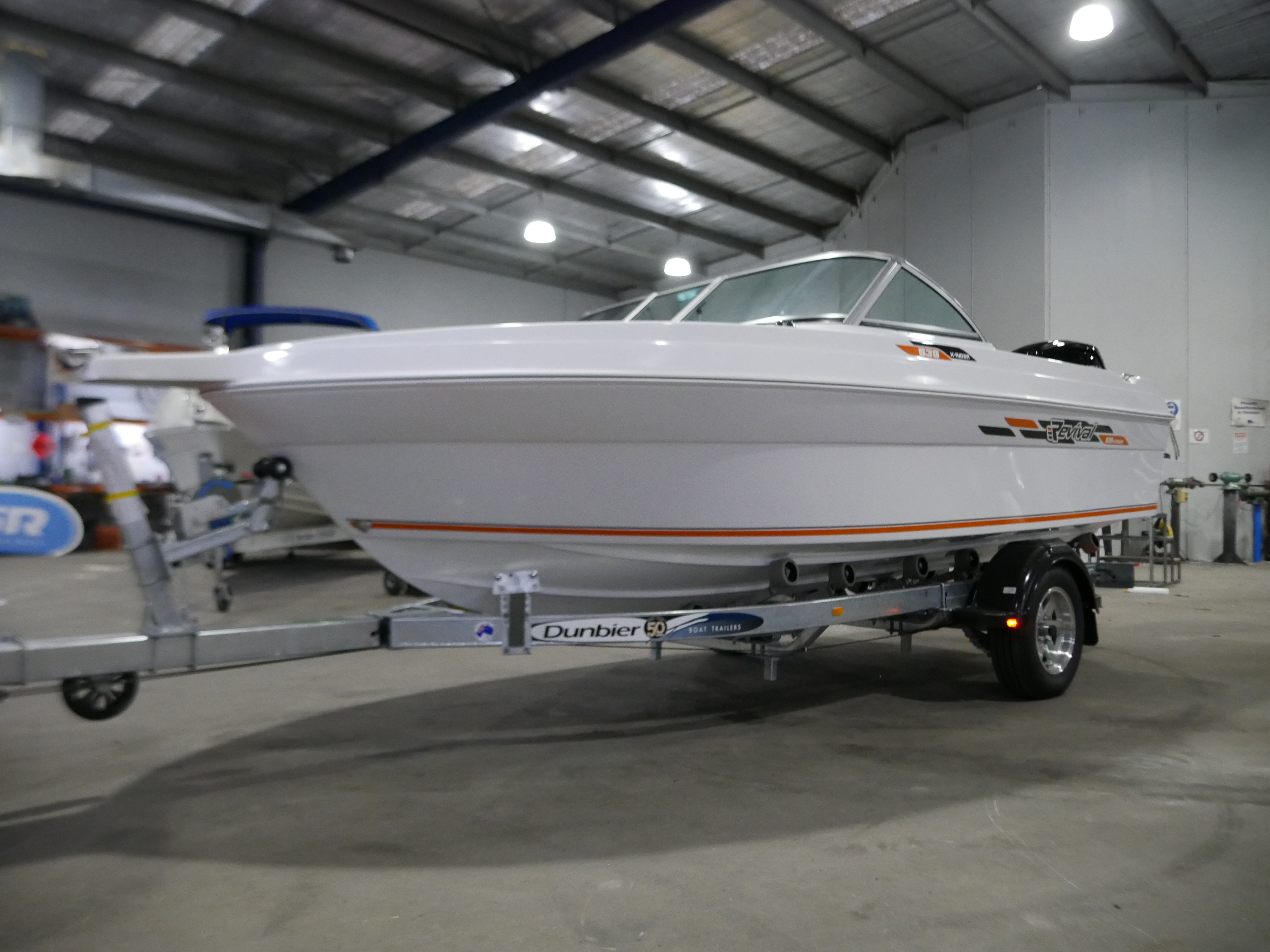

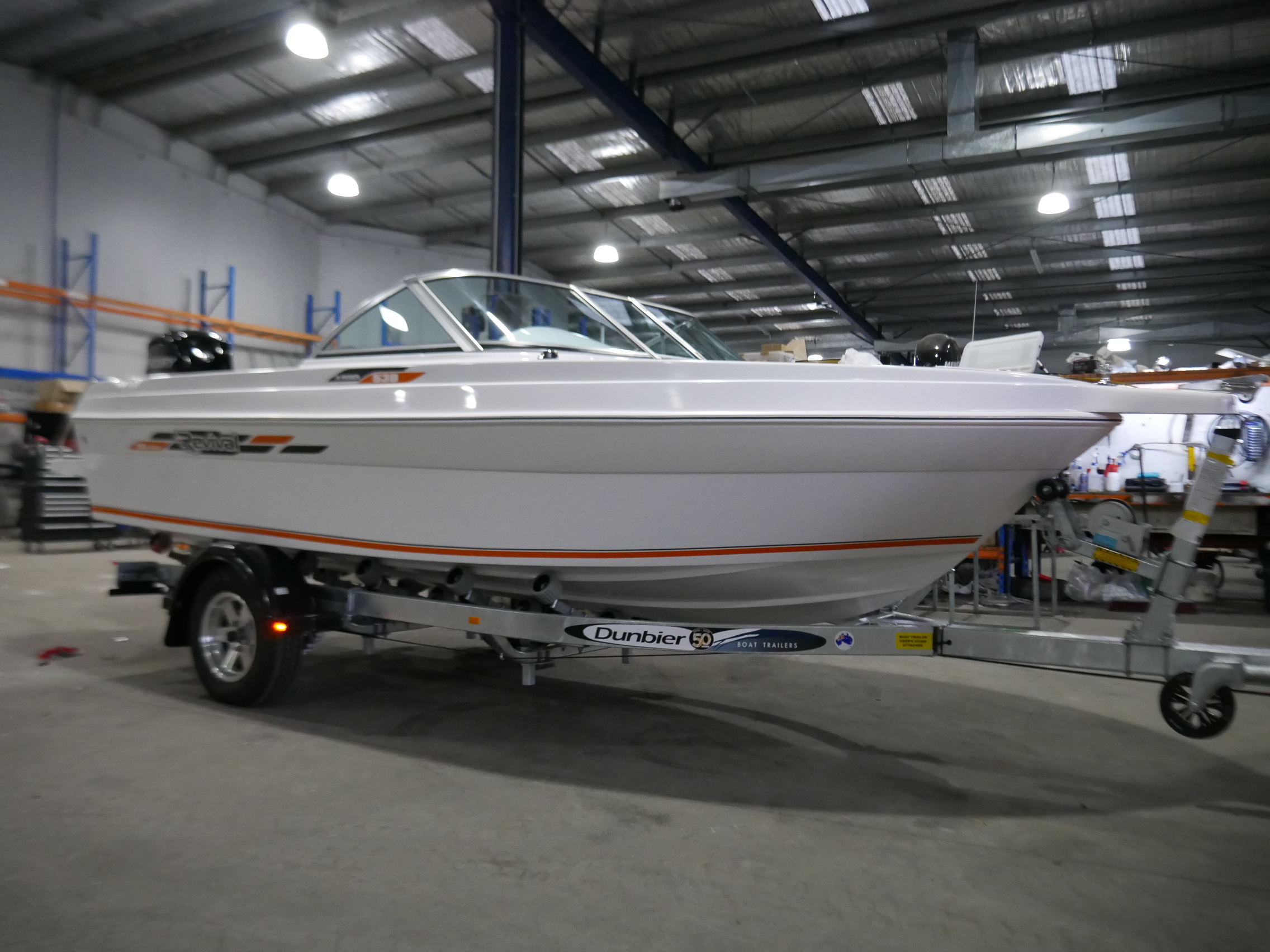

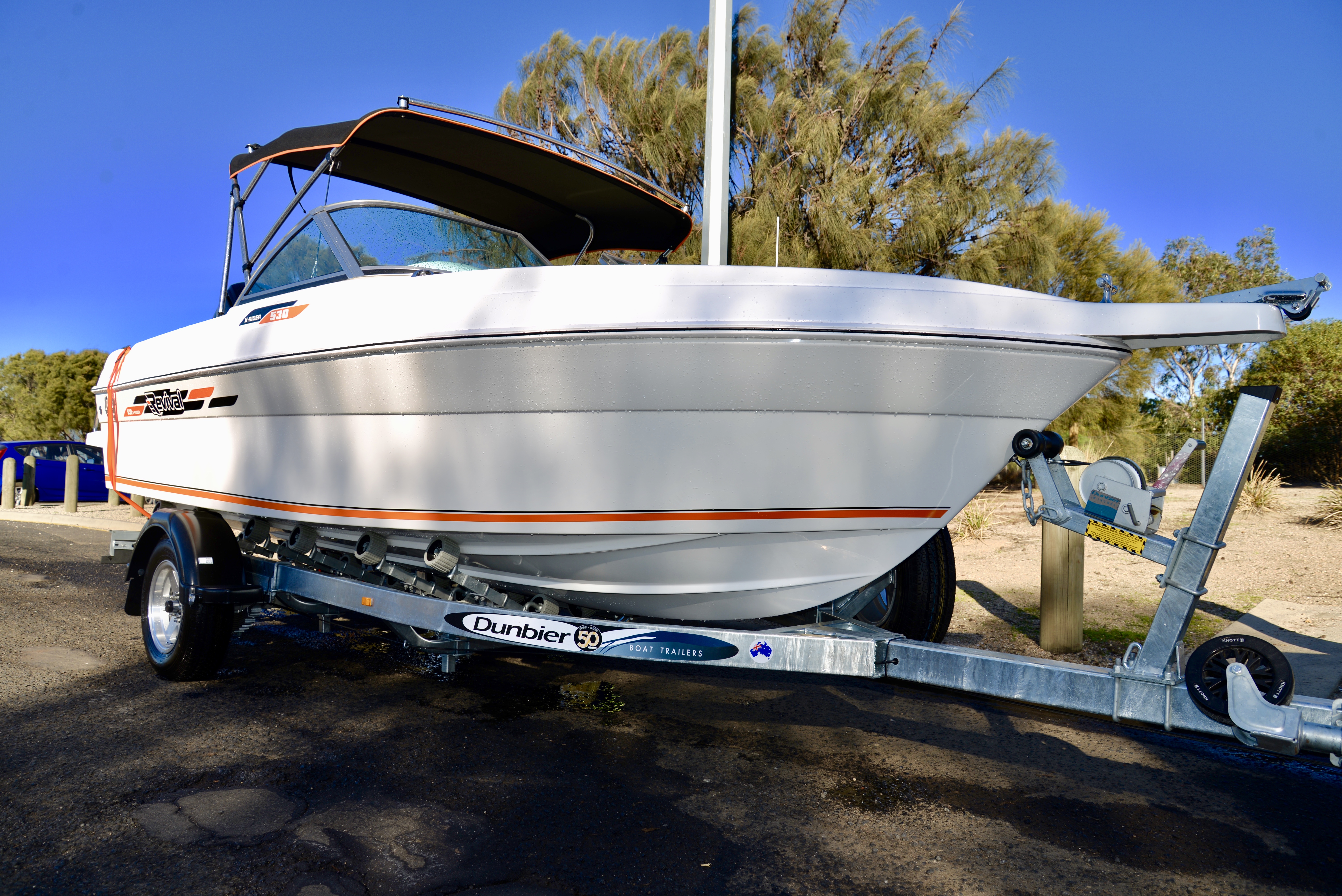

  • Height on Trailer to top of Windscreen... 2100mm

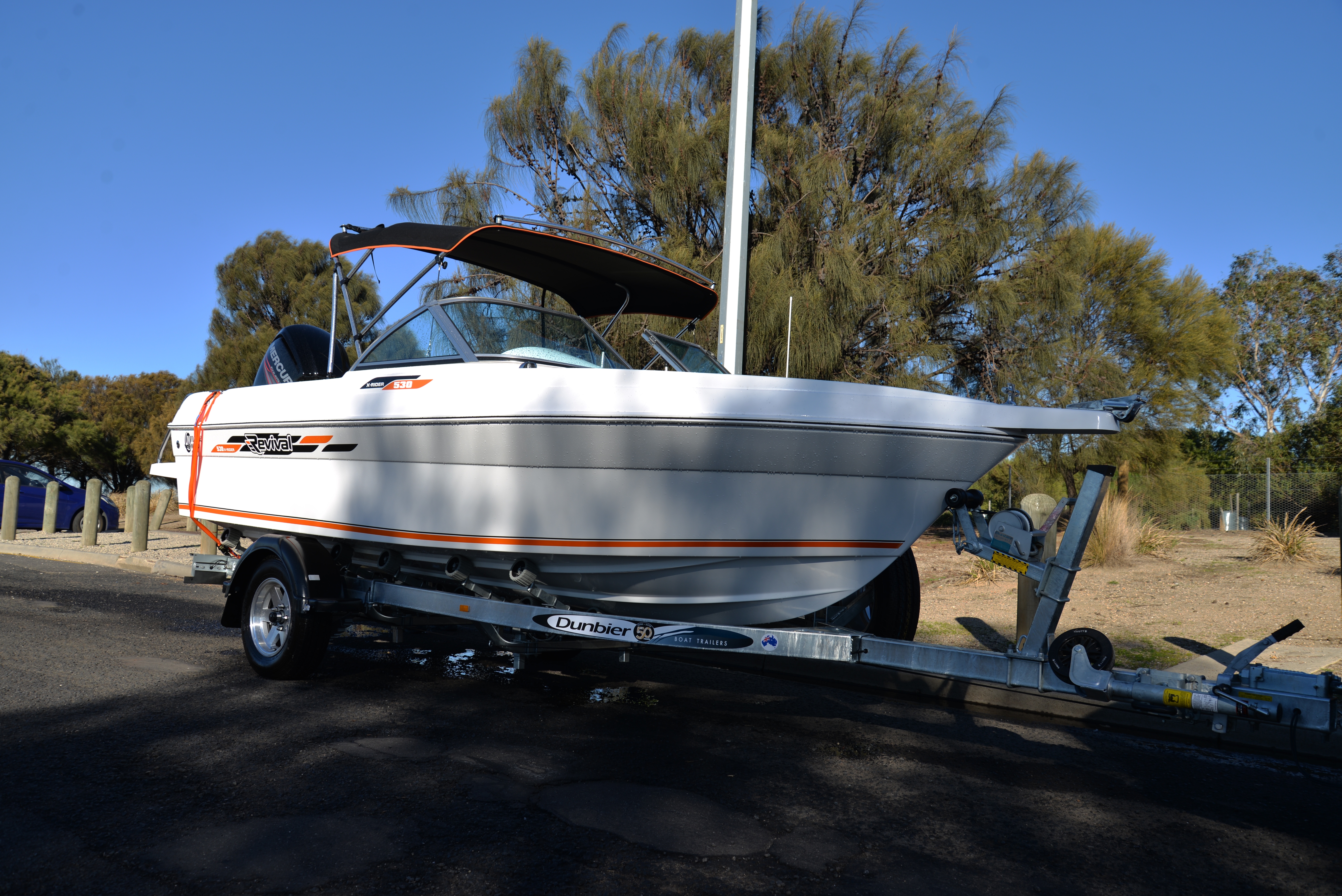

  • Overall Length on Trailer (mm)... 6500mm
  • Draft (mm)... 300mm
  • Hull Weight (kg) - dry... 650kg
  • BMT Weight (kg) - dry... 1350kg* (Subject to variation)
  • Fuel Capacity (lt)... 100lt
  • Number of People... 6 Adults
  • Horsepower... 90 - 115hp
  • Max Outboard Weight (kg)... 185kg
  • Estimated Cruise Speed (kph) w/Mid-Range hp... 42kph
  • Estimated WOT Speed (kph) w/Mid-Range hp... 72kph (135HP)
  • Internal Cockpit Length (mm)... 1800mm
  • Internal Cockpit Beam (mm)... 1800mm
  • Anchor Storage Compartment with Large Front Opening Hatch
  • Bilge Pump Hose and Outlet

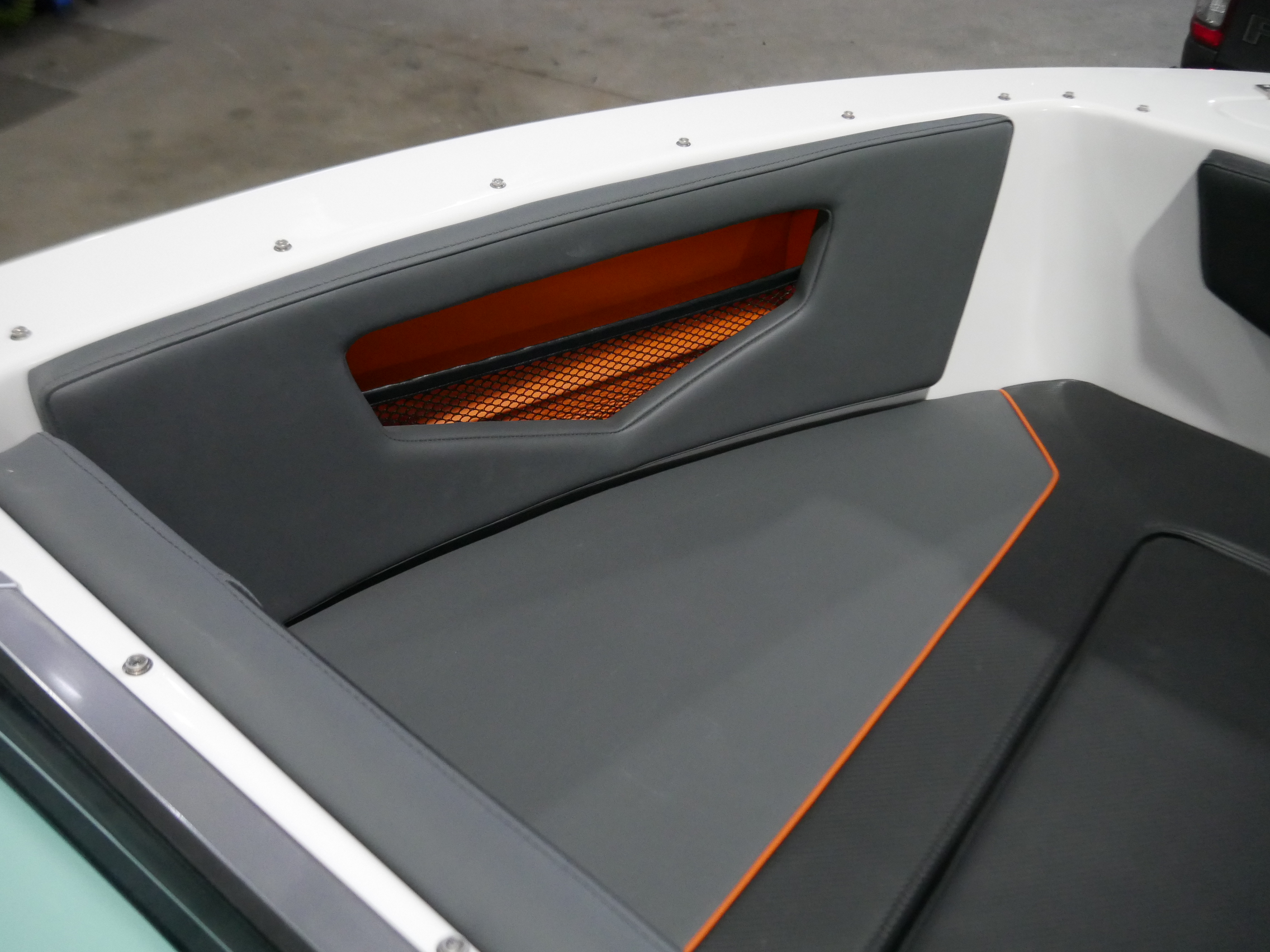

  • Bow Rider Cushions and Upholstered BackRests with Upholstered Storage Pockets (Centre Infill Optional)
  • Bow Roller - Stainless Steel
  • Carpeted Floor
  • Cockpit Side Pockets - Carpeted with Vinyl Trim
  • Drink Holders - x 4 (Black Plastic)
  • Foam-Filled Hull (From 1st July 2019)

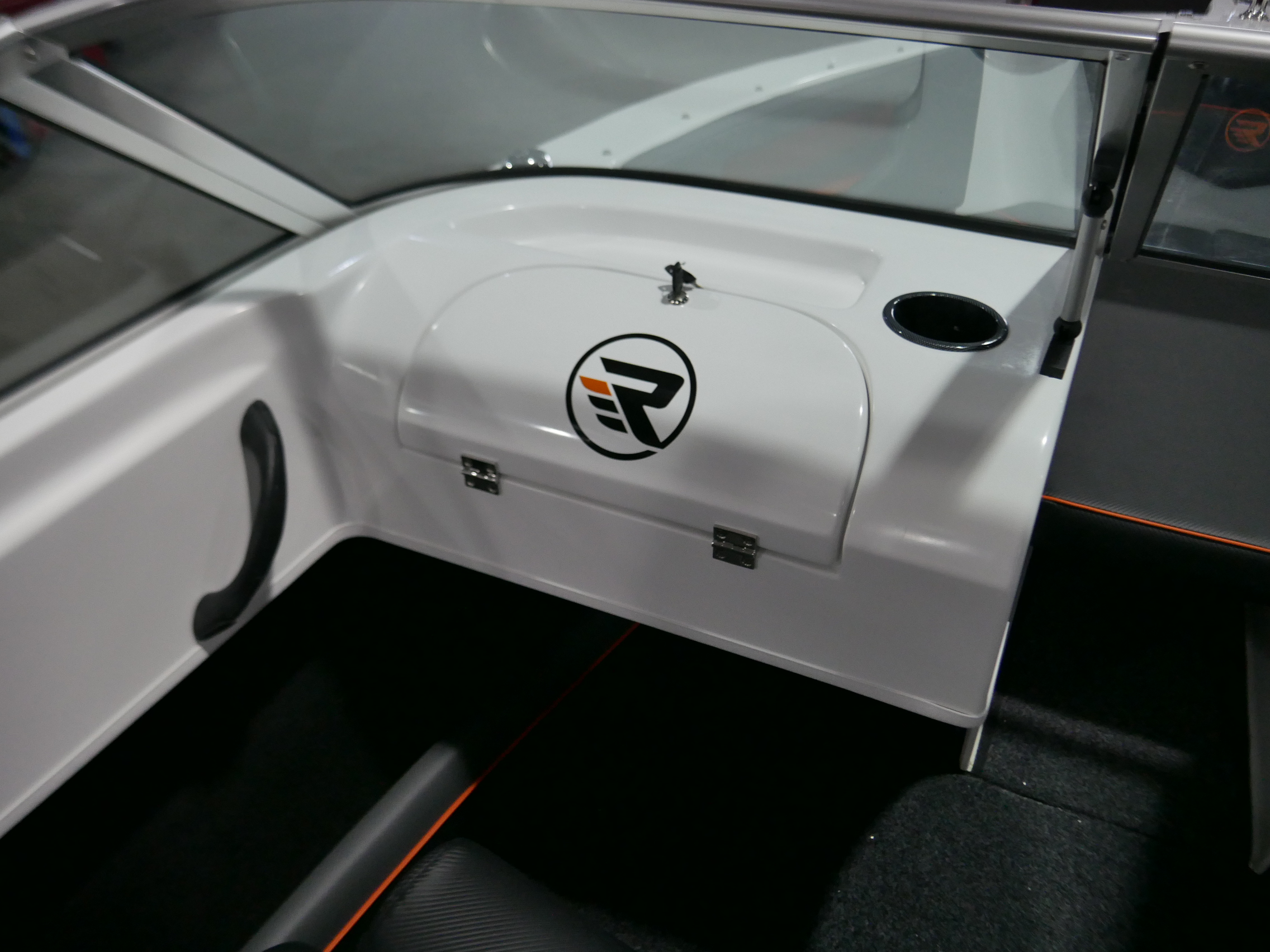

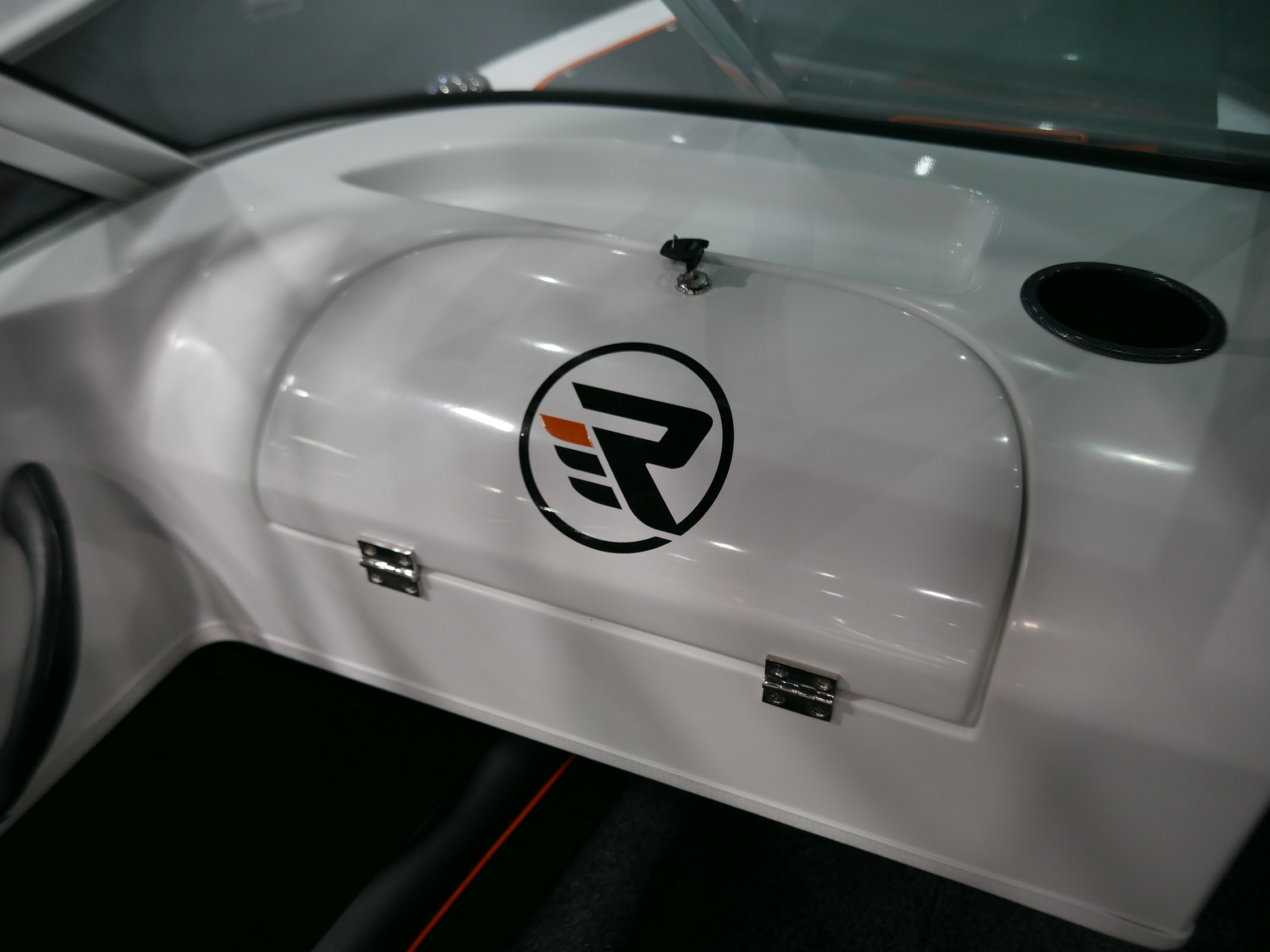

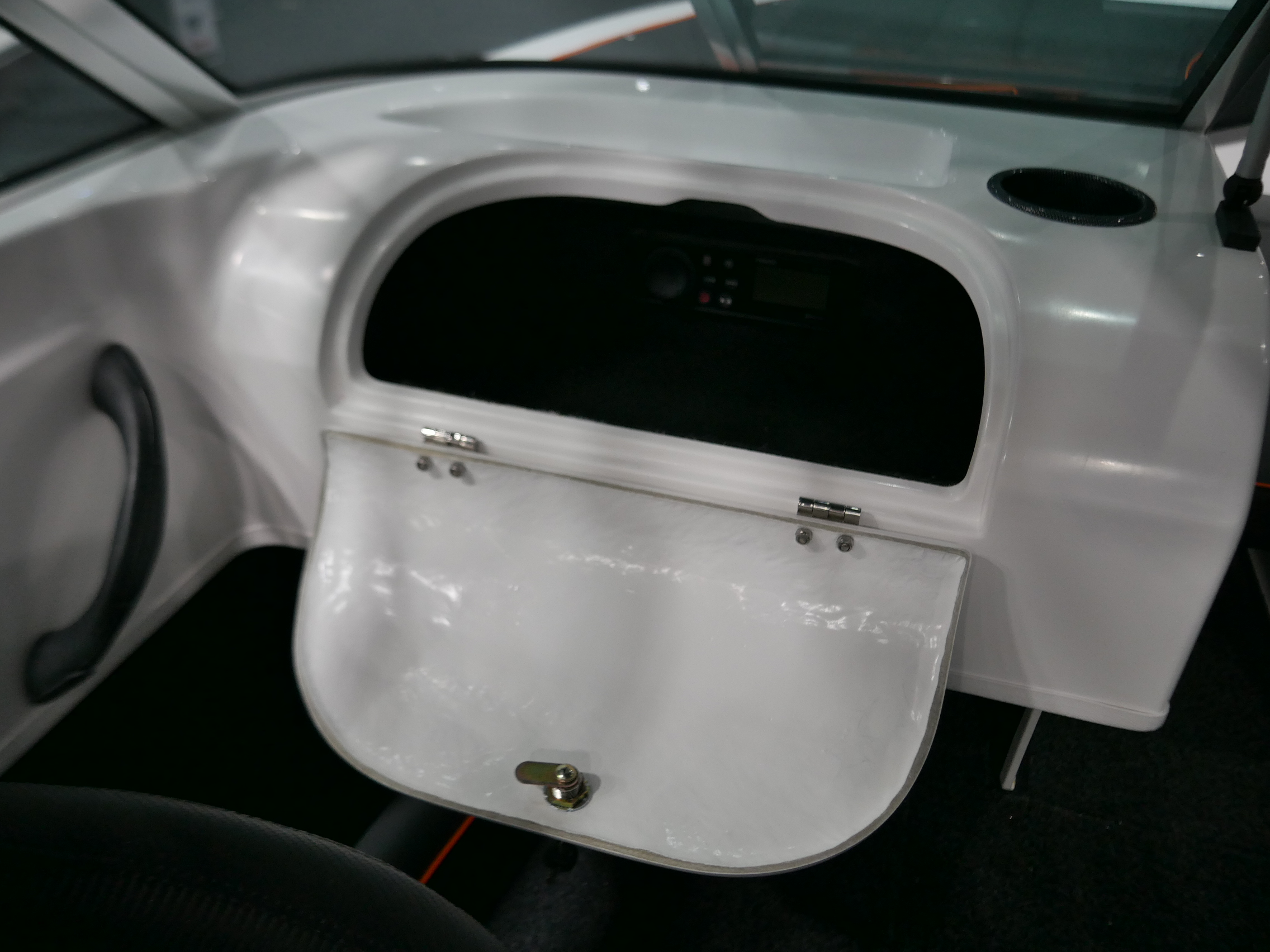

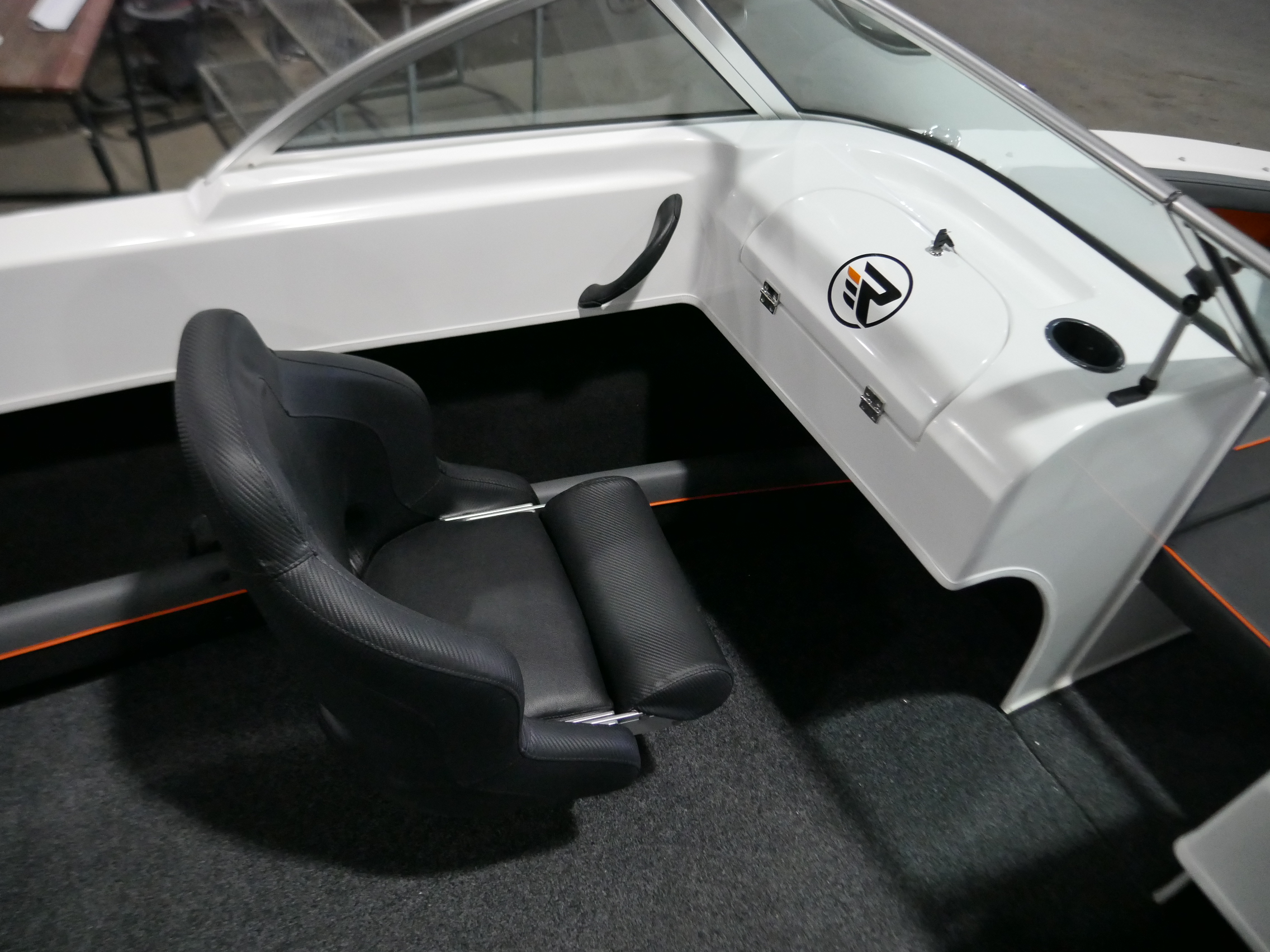

  • Glove Box - Large Fully-Carpeted

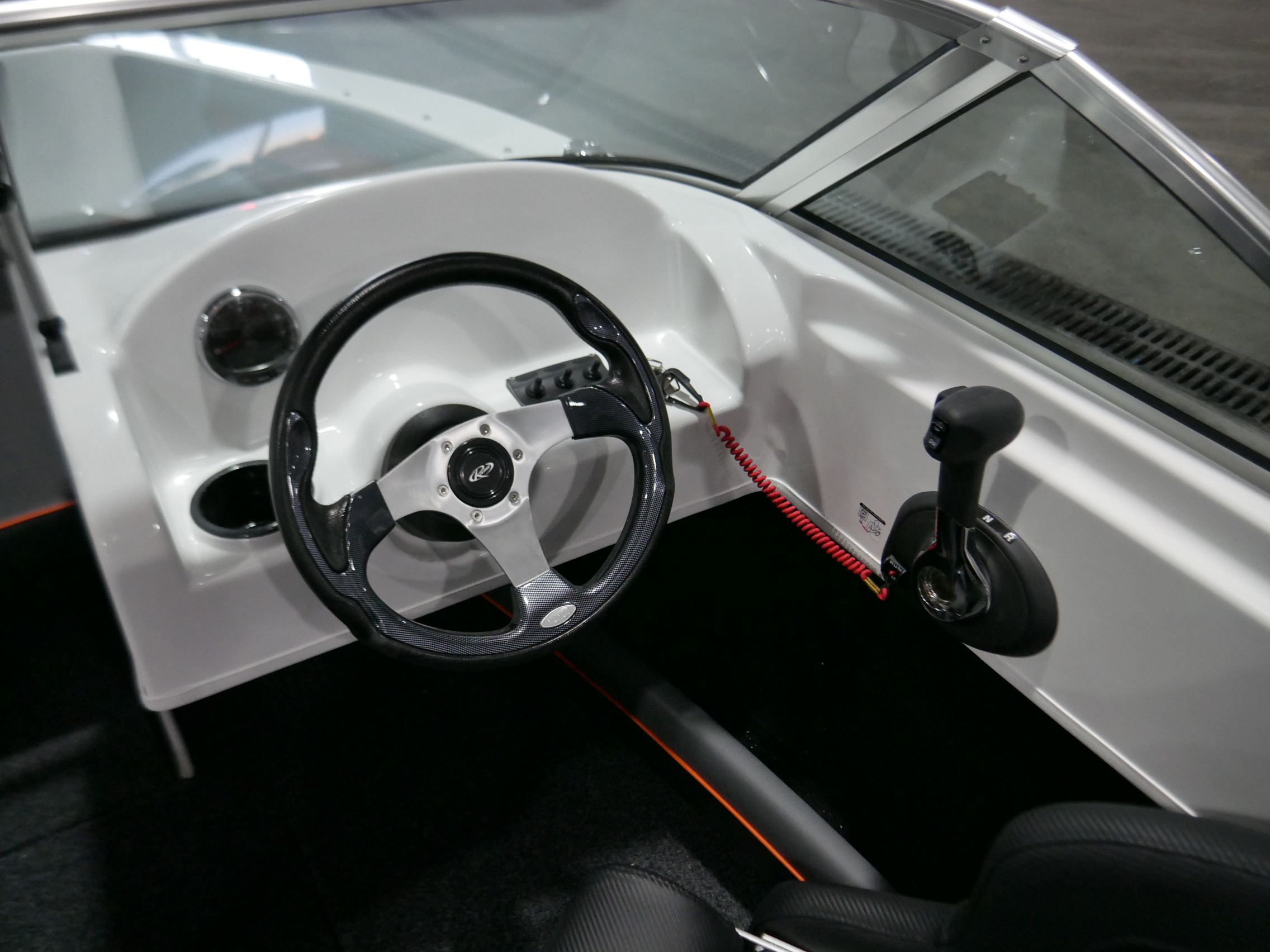

  • Mechanical Steering with 3-Spoke Wheel

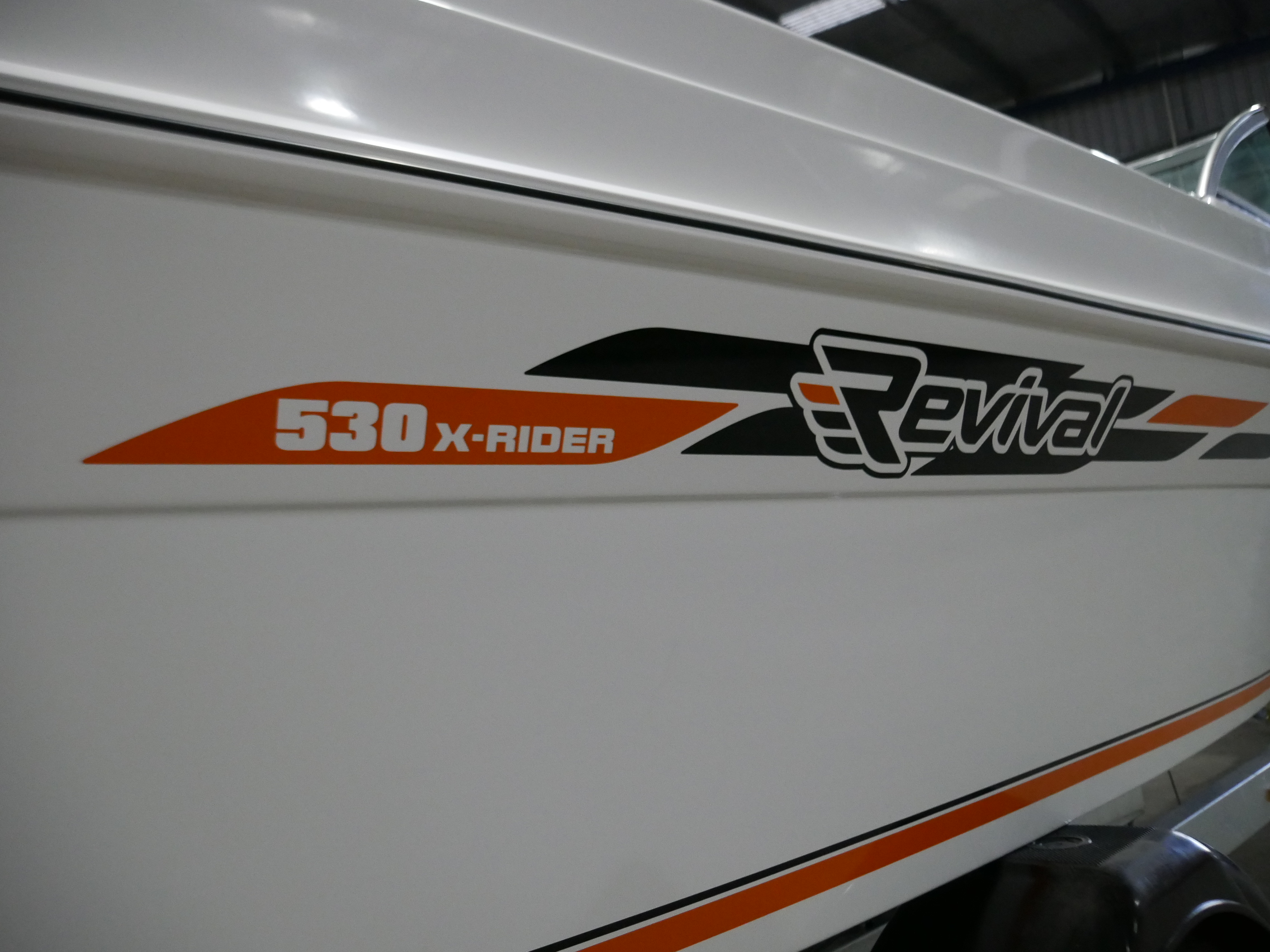

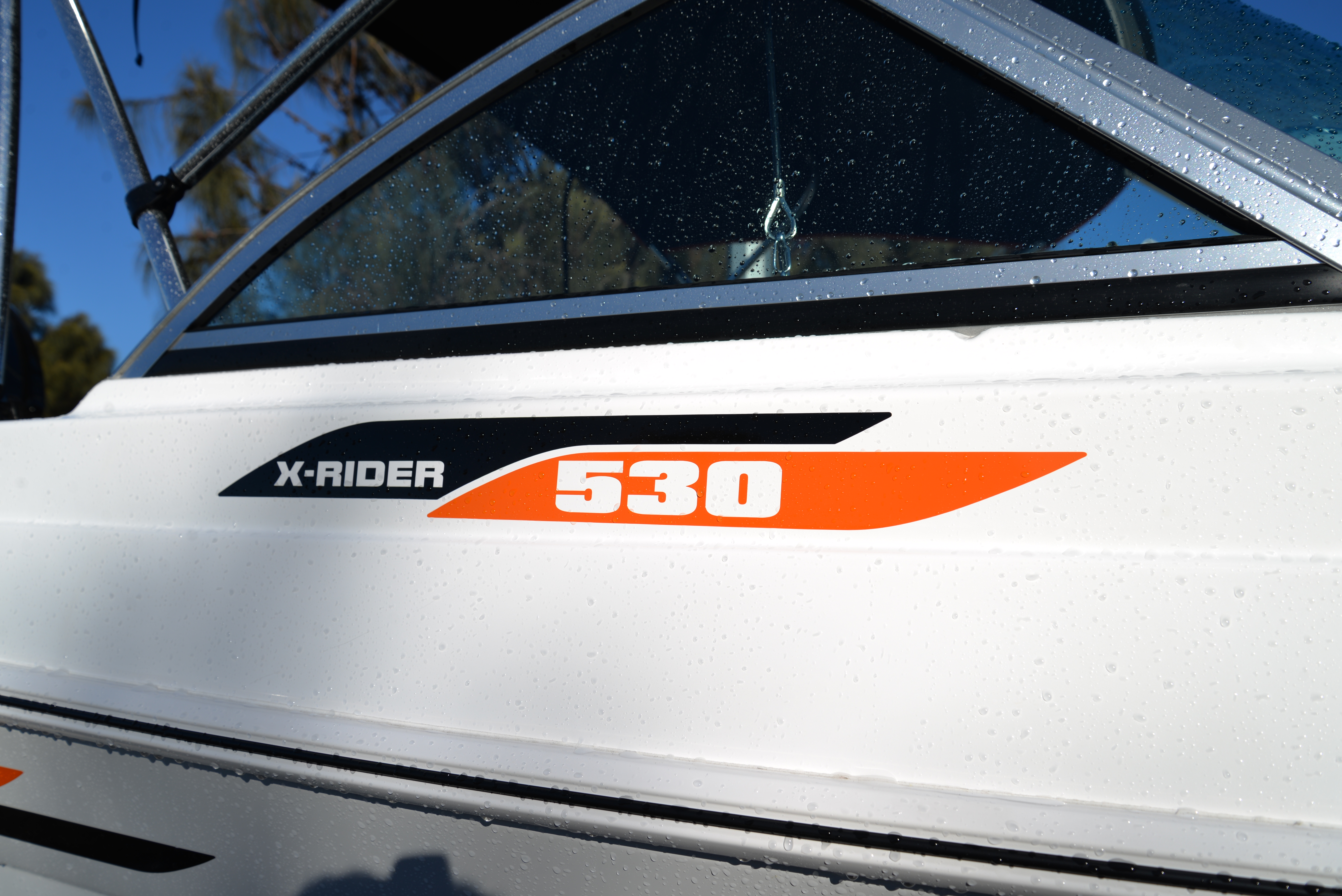

  • Hull and Deck - All White Gelcoat with Edition Specific Stripes and Graphics

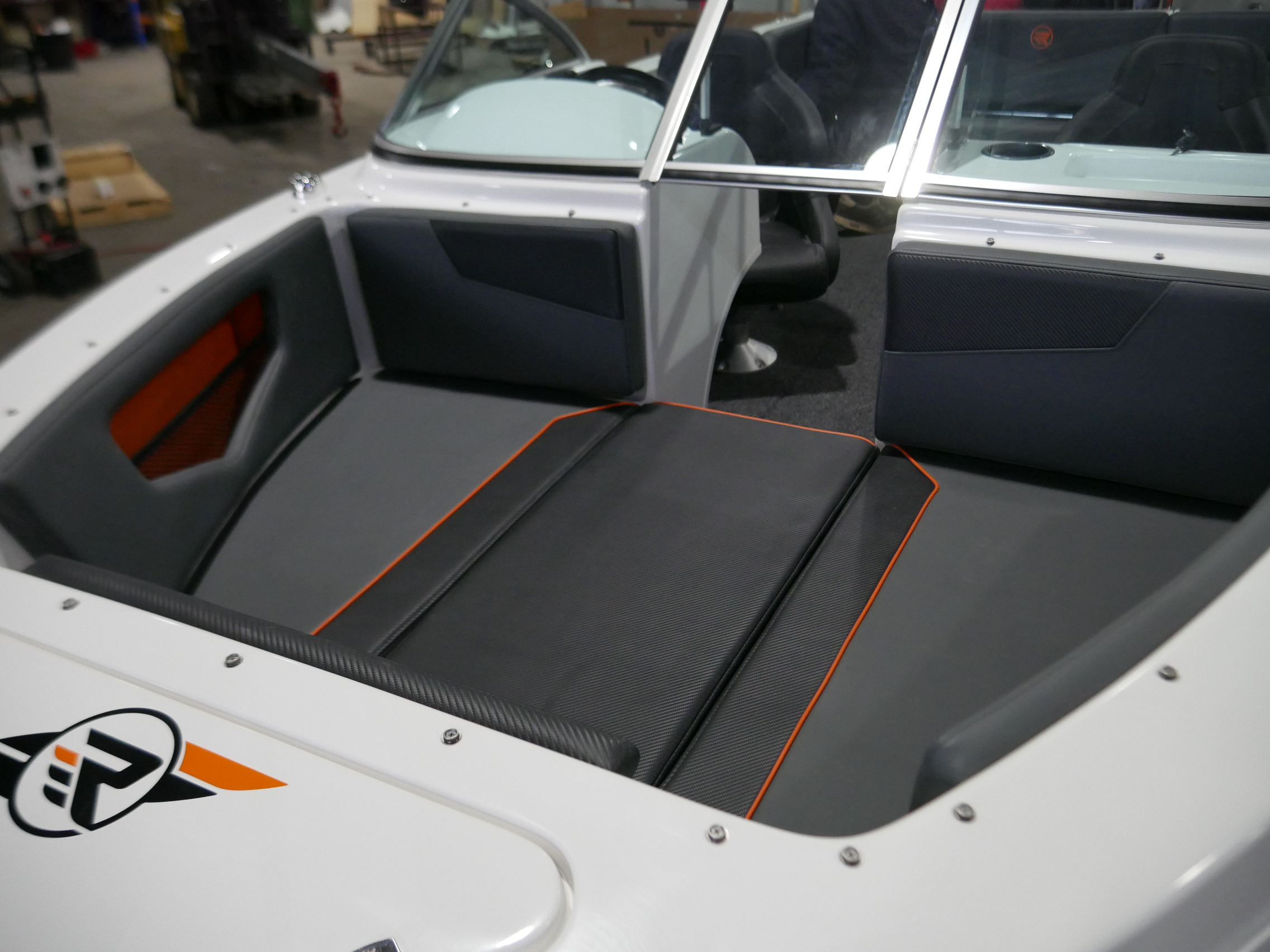

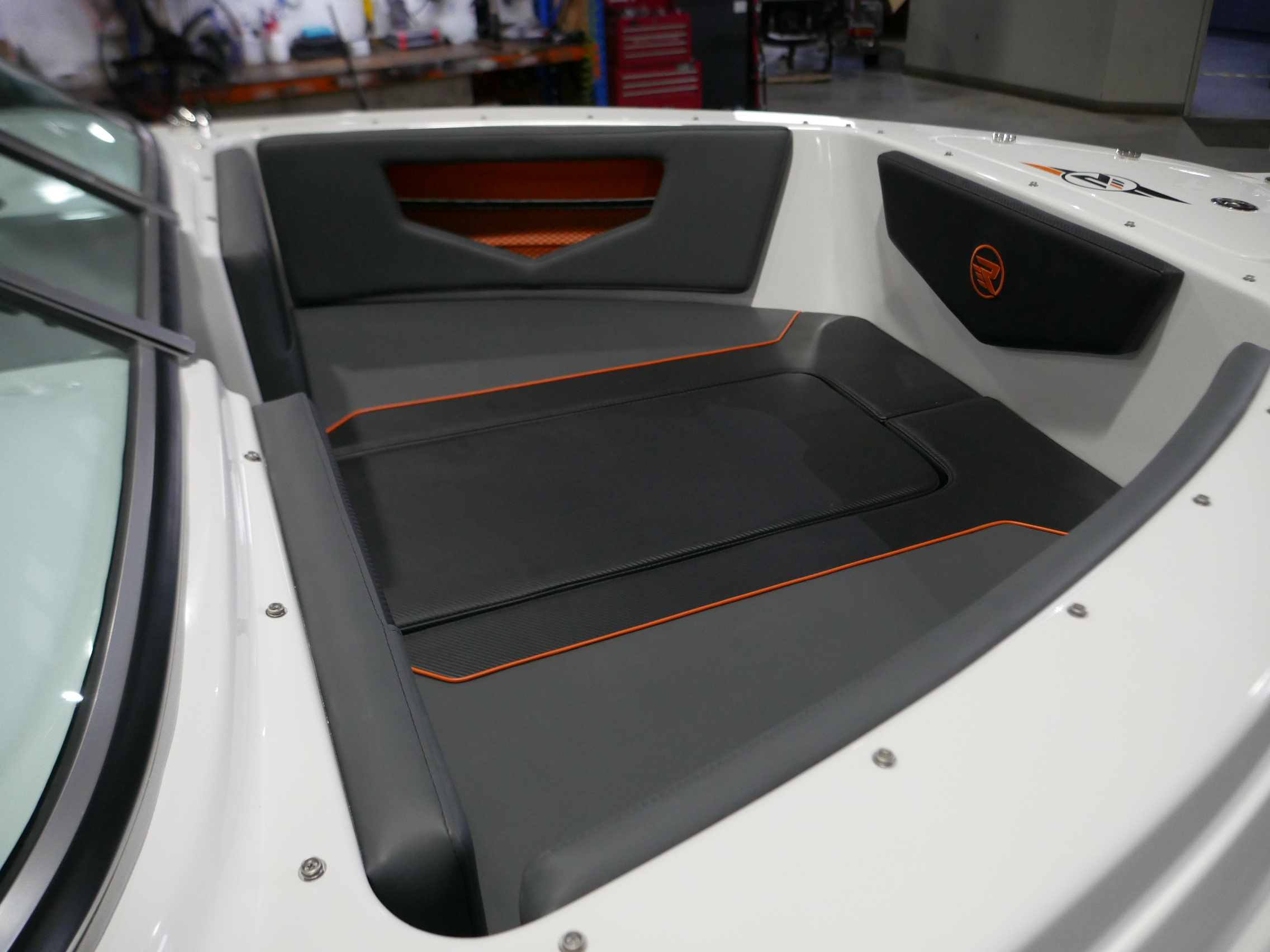

  • Large Bow Seating Area with Upholstered Seats Atop Concealed Storage Bins
  • Navigation Lights
  • Padded Side Pockets - Vinyl Detailing
  • Passenger Grab Handle  - Black
  • Rear Starboard-Side Storage Locker/Bait Well that Drains Overboard - Not Plumbed
  • Rear Fixed Cleats - Stainless Steel (2)

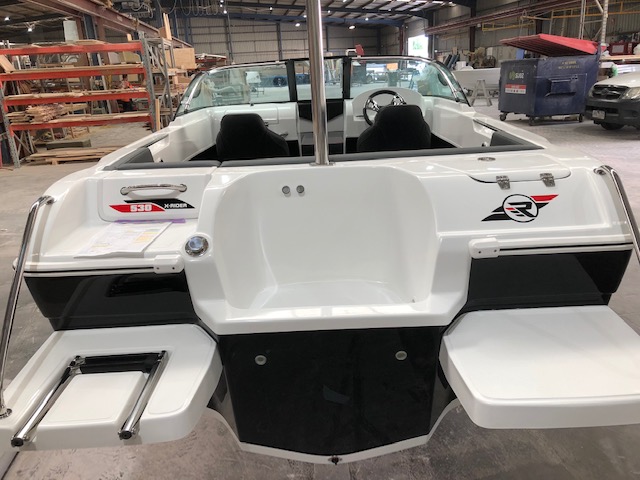

  • Rear Door/Step Through Transom
  • Rear Tow Eyes - Stainless Steel (2)

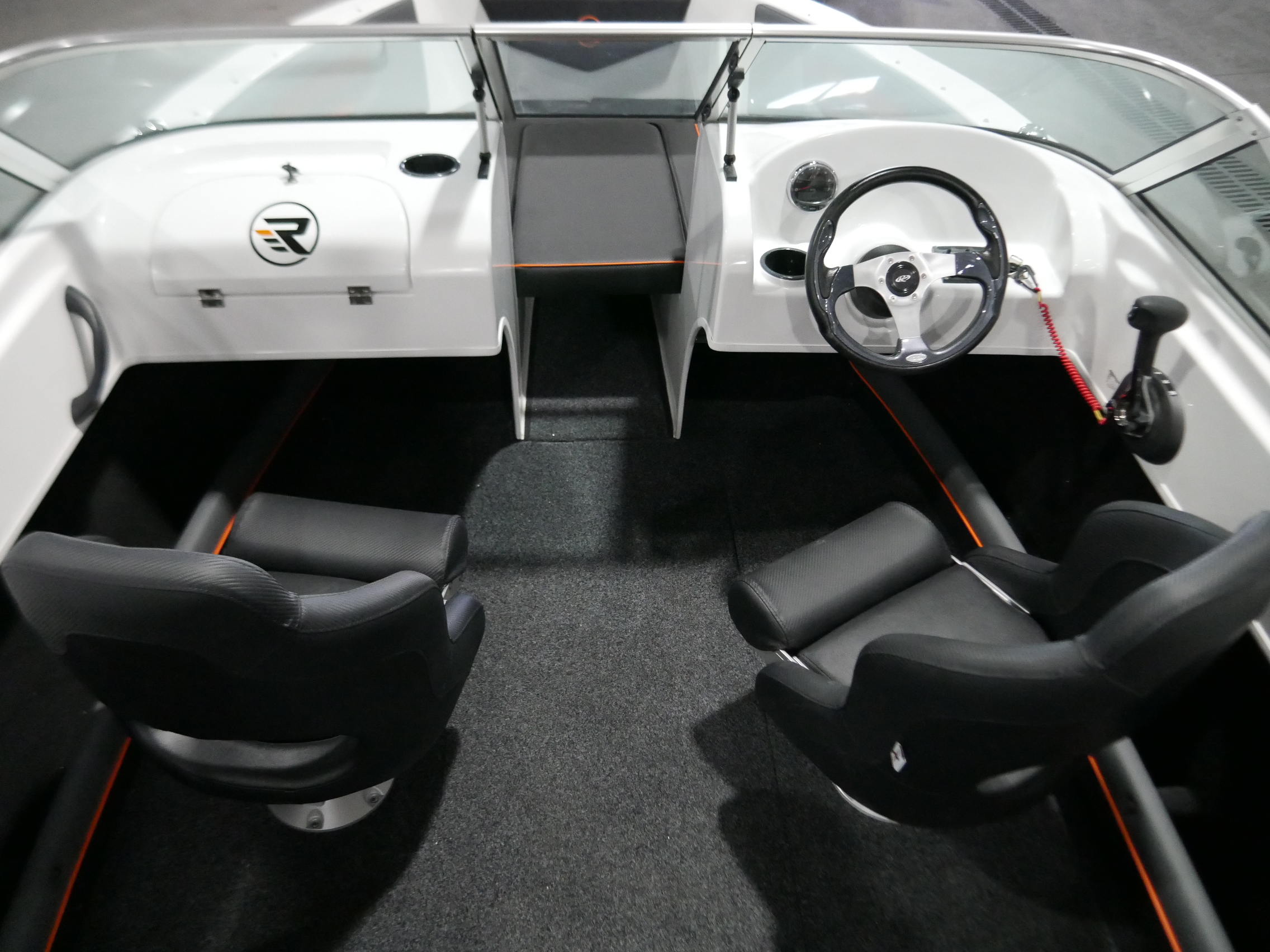

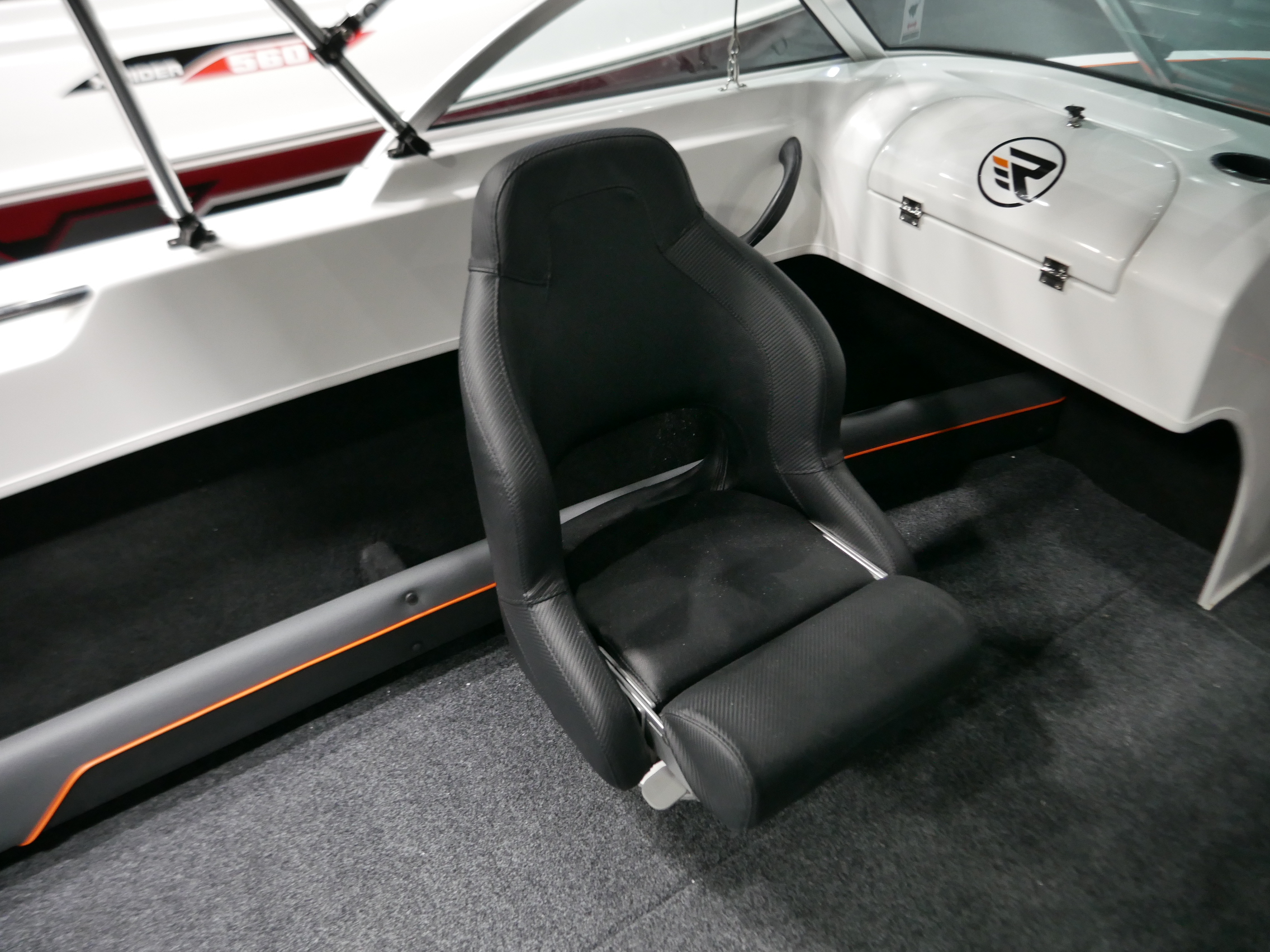

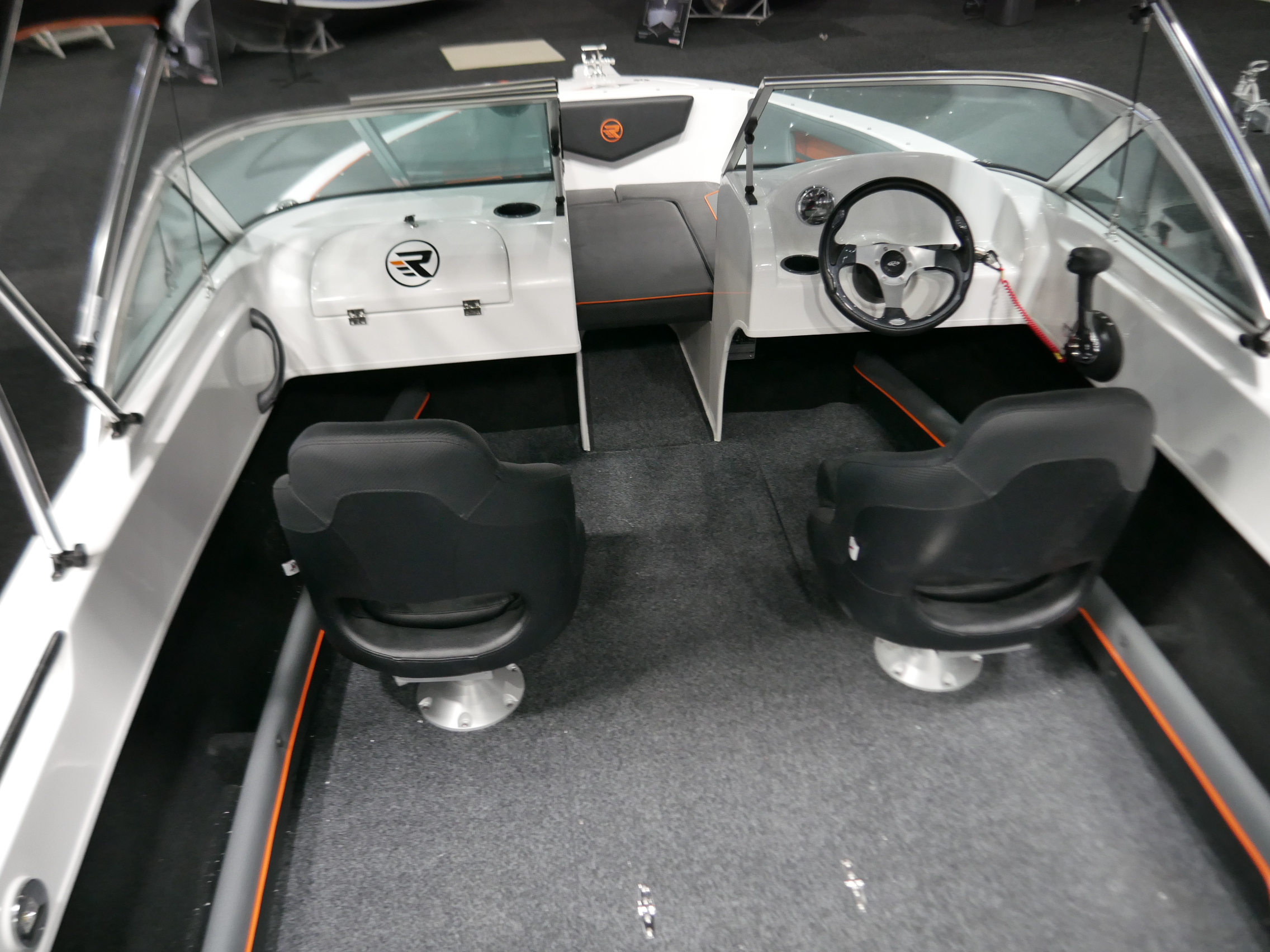

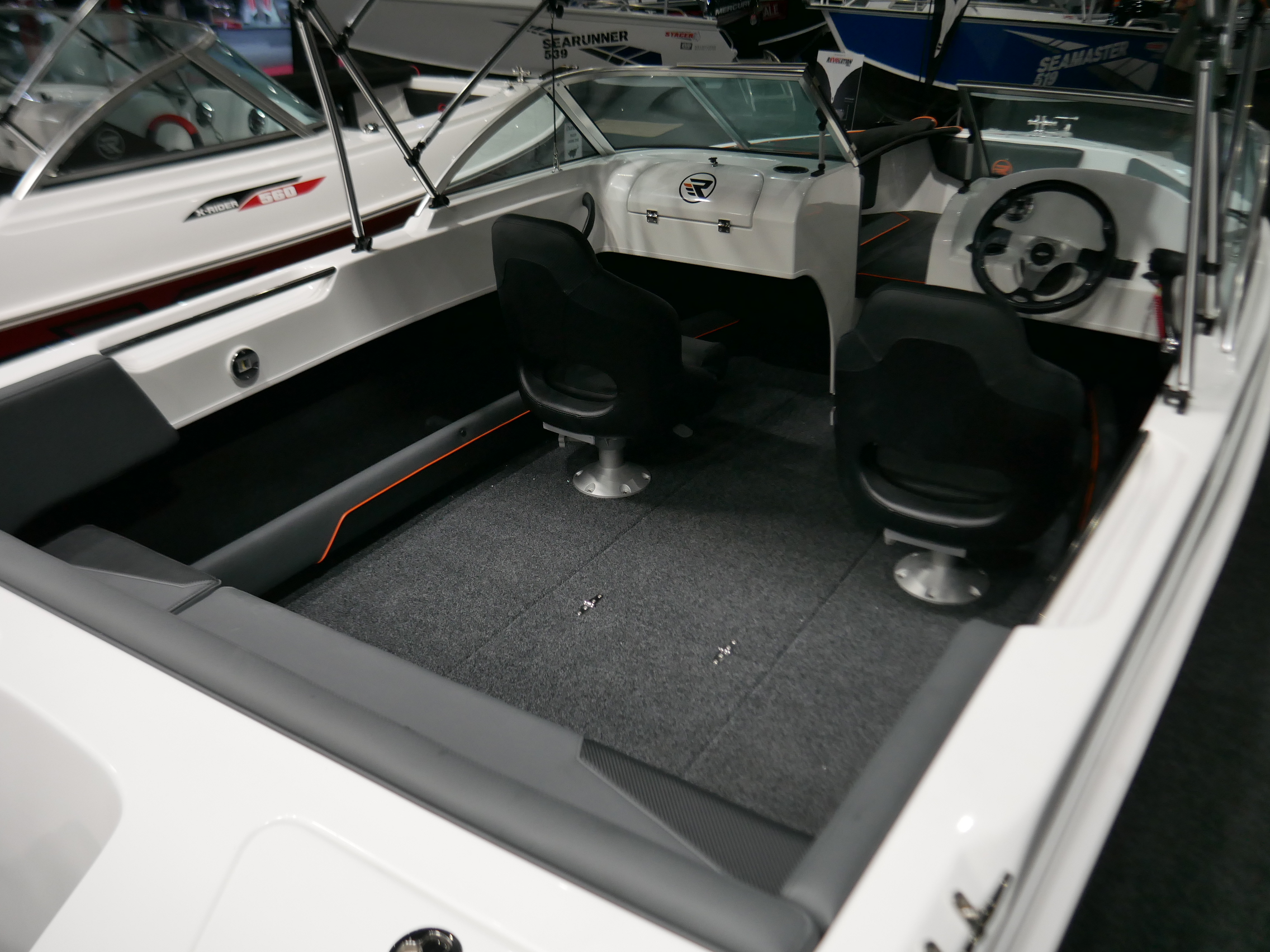

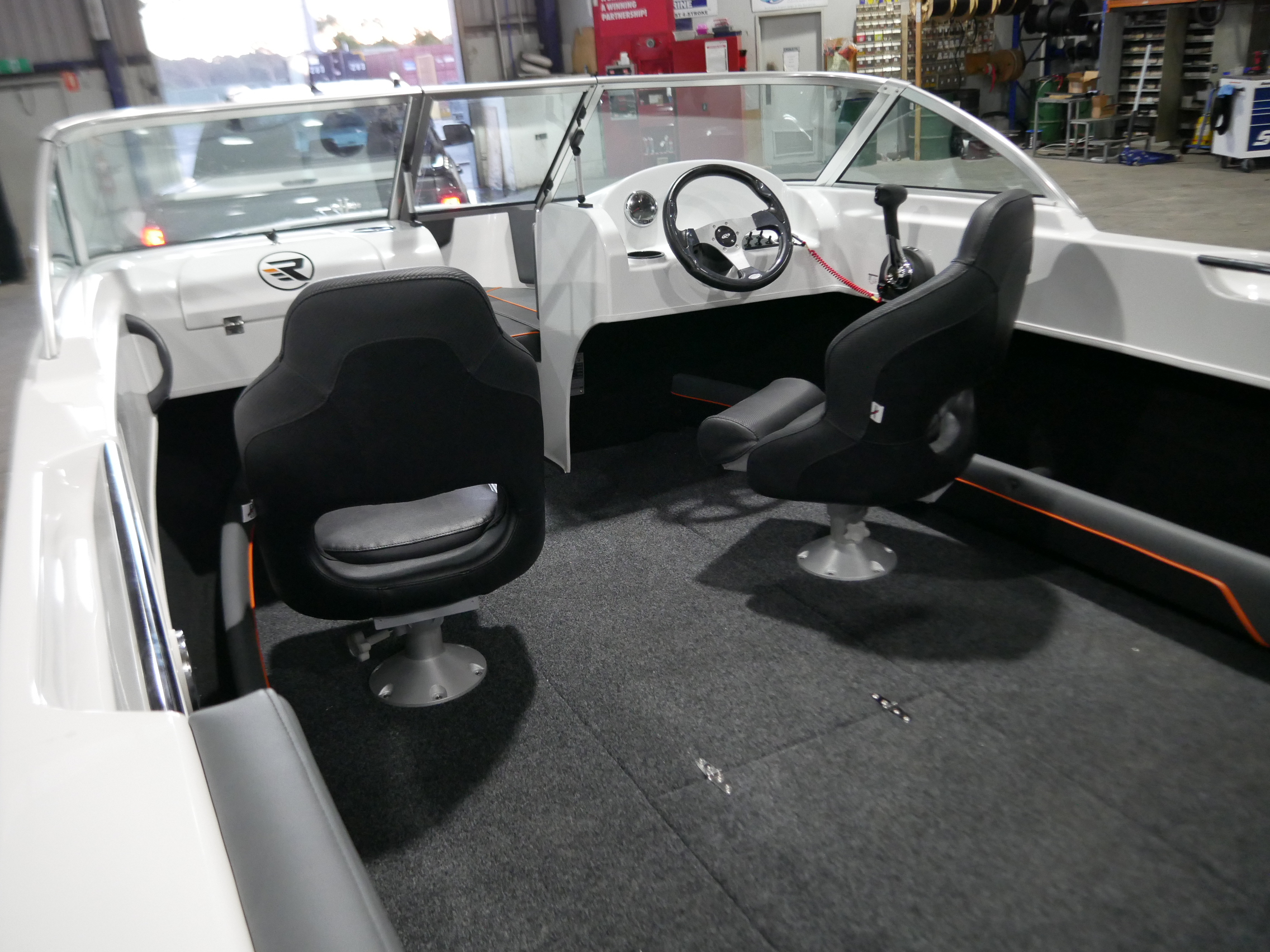

  • Swivel Bucket Seats on Fixed Pedestals with Seat Slides
  • Twin-Core Tinned Wiring to Dash
  • Two-Tone or Slab-side Coloured Gelcoat
  • Underfloor Fuel Tank 100L with Breathers that Drain to Engine Well, Fuel Sender, Filler Cap in Engine Well
  • Underfloor Kill Tank/ Storage Locker -  (Aprox 150lt)
  • Water-Resistant Switch Panel
